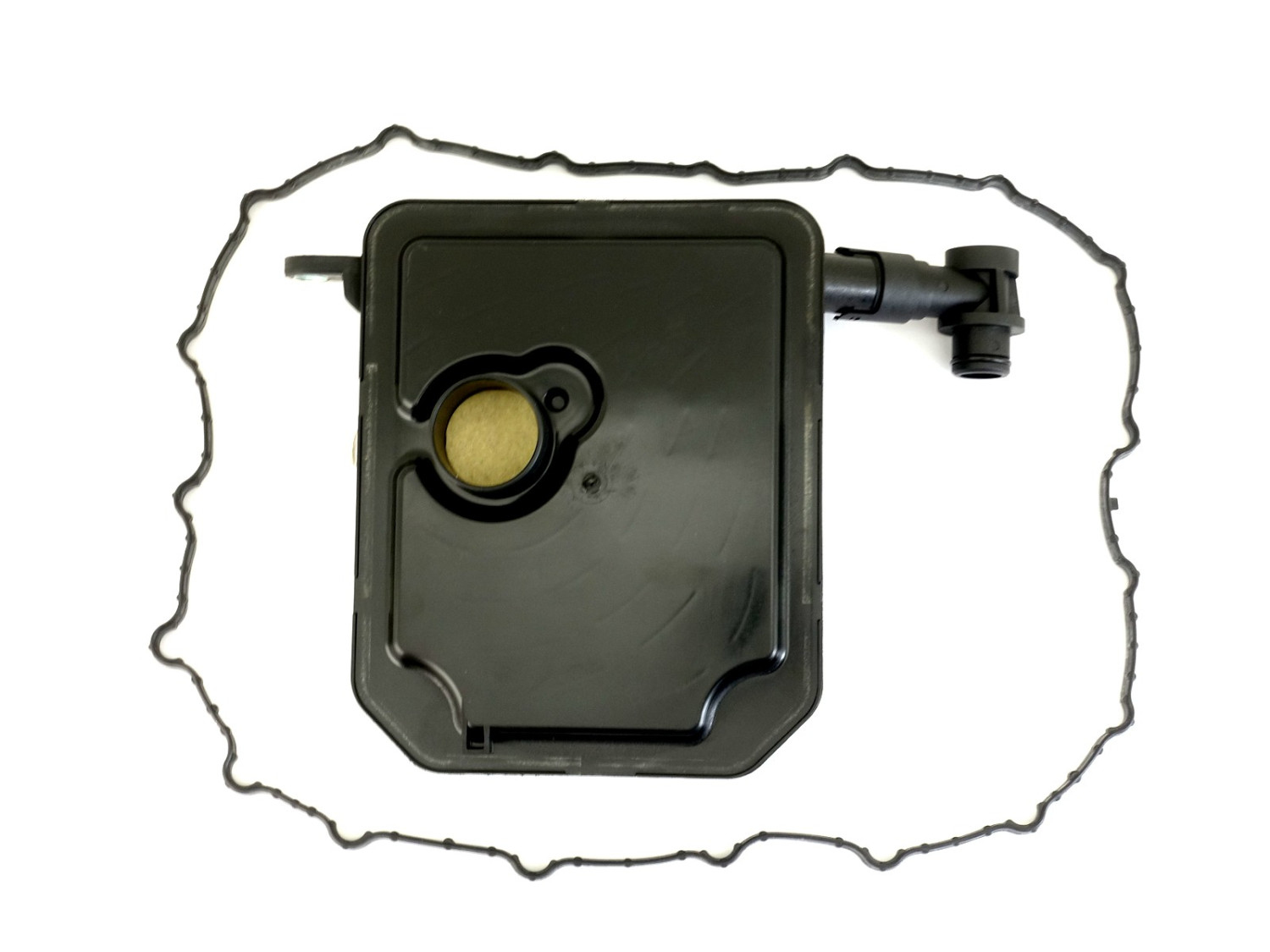

TRANSMISSION FILTER | AZUMI - JT11010K

Specification
Transmission Numbers
A6MF2H
Height (mm)
80
Size A
230
Size B
174
Location
Gear Box
Version Number
Number
JT11010
N/A
Crosses
Owner
Number
HYUNDAI / KIA
46321-3D600
HYUNDAI / KIA
46321-3D800
Application
11.22 ~
PGR23 , Eng: 1.6L G4FT
(Gear Box)
11.19 ~12.22
PM920 KDOM , Eng: 2.4L G4KK
(Gear Box)
06.20 ~
KEURPSC20 , Eng: 1.6L G4FT
(Gear Box)
10.22 ~01.24
PDA22 US , Eng: 1.6L G4FT
(Gear Box)
08.23 ~
PHK24 KDOM , Eng: 1.6L G4FT
(Gear Box)
01.24 ~
PHK24 RHD , Eng: 1.6L G4FT
(Gear Box)
02.19 ~05.23
PHT20 GL , Eng: 2.0L G4NR
(Gear Box)
02.19 ~05.23
PHT20 KDOM , Eng: 2.0L G4NR
(Gear Box)
03.19 ~
PHT20 US , Eng: 2.0L G4NR
(Gear Box)
03.17 ~01.20
RPE617 , Eng: 2.0L G4NG
(Gear Box)
08.24 ~
PDR24 EU WGN 9P , Eng: 1.6L G4FT
(Gear Box)
09.20 ~
PHE21 , Eng: 1.6L G4FT
(Gear Box)
09.20 ~
PHE21 SG RHD , Eng: 1.6L G4FT
(Gear Box)
12.23 ~
PHE24 RHD JB8 , Eng: 1.6L G4FT
(Gear Box)
12.23 ~
PHE24 EU JE8 , Eng: 1.6L G4FT
(Gear Box)
09.24 ~
PGX24 , Eng: 1.6L G4FT
(Gear Box)
08.24 ~
PGL24 KDOM , Eng: 1.6L G4FT
(Gear Box)
03.16 ~10.18
PA816 , Eng: 2.0L G4NG
(Gear Box)
01.20 ~07.23
PHC20 RHD , Eng: 1.6L G4FT
(Gear Box)
07.23 ~
PHC23 RHD , Eng: 1.6L G4FT
(Gear Box)
07.23 ~
PHC23 RHD SG , Eng: 1.6L G4FT
(Gear Box)
04.21 ~
PJY22 RHD , Eng: 1.6L G4FT
(Gear Box)
Certain filtration product applications may require additional fitment verification before installation due to vehicle specification variations.
Vehicle application information is provided as a guide only, and independent confirmation of compatibility is recommended prior to installation.
